The CHICO brand includes three categories of Insulating glass warm spacer bars:
  1. Stainless steel coated Insulating glass warm spacer bars
  2. Pure stainless steel Insulating glass warm spacer bars
  3. Glass fiber reinforced materials Insulating glass warm spacer bars

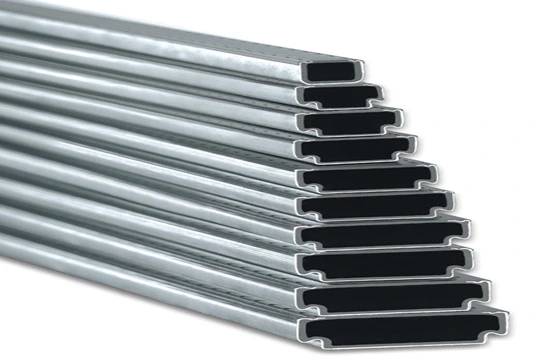

Double glass accessories aluminum spacer bar
1.Two type: Bendable and Non-bendable aluminum spacer bar.
2.Wall thickness: From 0.16 to 0.34mm.
3.Usage:Insulating glass


Product Description
1. Two kinds: Bendable and Non-bendable.
2. Wall thickness:Single-side wall thickness is within 0.20~ 0.35mm,and limit deviation of peripheral wall thickness is ±0.025mm.

3. Usage: Windows Seal and Insulating glass .
4. Certification: CE. IGCC.SGS.AMOA

Product NameInsulating Glass Aluminum Spacer Bar
MaterialAluminum
width 5.5-27MM
MOQ15000meters
Packagecarton
Payment term T/T , L/C and negotiated
Delivery time 5-15 working days
UsedInsulating glass making


Main Feature:

1. Technology adopted ISO 9001:2008 standard.
2. Aluminum spacer thickness 0.32&0.35mm, anti-corrosion.
3. Unique design profiles, excellent bending property.
4. Unique surface treatment, better sealing properties with sealants.
5. High-frequency induction welded, continuous welding seam quality monitoring by eddy current system.
6. No burr and no deformation after cutting, better for connected.
7. Making LOGO as customer special requirement.

PRODU  CT SPECIFICATION MODEL

SpecificationSection widthInterface heightLengthPacking
6A5.5mm6.5mm5m\6m5-layer carton or iron bracket
8A7.5mm6.5mm5m\6m5-layer carton or iron bracket
9A8.5mm6.5mm5m\6m5-layer carton or iron bracket
10A9.5mm6.5mm5m\6m5-layer carton or iron bracket
12A11.5mm6.5mm5m\6m5-layer carton or iron bracket
14A13.5mm6.5mm5m\6m5-layer carton or iron bracket
16A15.5mm6.5mm5m\6m5-layer carton or iron bracket
18A17.5mm6.5mm5m\6m5-layer carton or iron bracket
20A19.5mm6.5mm5m\6m5-layer carton or iron bracket
22A21.5mm6.5mm5m\6m5-layer carton or iron bracket
24A23.5mm6.5mm5m\6m5-layer carton or iron bracket
27A26.5mm6.5mm5m\6m5-layer carton or iron bracket
Bendable and Non-Bendable Double Glass Accessories Aluminum Spacer BarBendable and Non-Bendable Double Glass Accessories Aluminum Spacer Bar
Bendable and Non-Bendable Double Glass Accessories Aluminum Spacer BarBendable and Non-Bendable Double Glass Accessories Aluminum Spacer Bar
