1. Over 10 years experience manufacturer in PCBA service field.
2. Big scale of producing makes sure that your purchase cost is lower.
3. Advanced production line guarantees stable quality and long life span.
4. Design and produce almost any PCB as your requirement.
5. 100% test for all customized pcb products
6. One-stop Service ,we can help to purchase the compnents

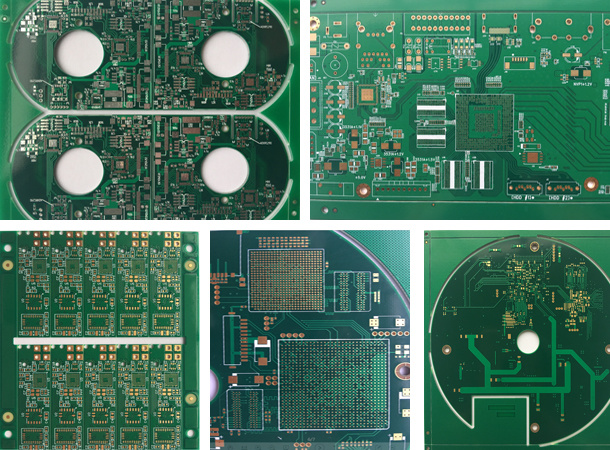

Can we see other PCBs?
Can we know your factory PCB manufacture capability?
PCB Manufacture Capability
|Material Types||Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free,|
|Isola, Taconic, Arlon, Teflon, Rogers,|
|Max. Panel Dimension||39000mil * 47000mil (1000mm * 1200mm)|
|Outline Tolerance||± 4mil (± 0.10mm)|
|Board Thickness||8mil-236mil (0.2 - 6.0mm)|
|Board Thickness Tolerance||± 10%|
|Dielectric Thickness||3mil-8mil ( 0.075mm-0.20mm)|
|Min. Track Width||3mil ( 0.075mm )|
|Min. Track Space||3mil ( 0.075mm )|
|External Cu Thickness||0.5 OZ - 10 OZ ( 17um - 350um)|
|Internal Cu Thickness||0.5OZ - 6OZ ( 17um - 210um)|
|Drilling Bit Size ( CNC )||6mil-256mil ( 0.15mm - 6.50mm)|
|Finished Hole Dimension||4mil-236mil(0.1mm - 6.0mm)|
|Hole Tolerance||± 2mil (± 0.05mm)|
|Laser Drilling Hole Size||4mil(0.1mm)|
|Aspect Ration||16: 1|
|Solder Mask||Green, Blue, White, Black, Red, Yellow, Purple, etc.|
|Min Solder mask Bridge||2mil(0.050mm)|
|Plugged Hole Diameter||8mil-20mil ( 0.20mm-0.50mm)|
|Beveling||30o - 45o|
|V-scoring||+/-0.1mm, 15o 30o 45o 60o|
|Impedance Control||Min. 5% General ± 10%|
|Surface Finishing||HASL, HASL(lead Free), Immersion Gold|
|Immersion Silver, OSP, Hard Gold ( up to 100u" )|
|Certification||UL RoHS ISO9001: 2000 ISO14000: 2004 SGS|
|Testing||Flying probe, E-TEST, X-RAY Inspection , AOI|
|Files||Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc|
Can You Show some Pictures of the PCB factory?
How to pay and how to ship?
Q1: What's your minimum order quantity?
A1: No MOQ , 1 pcs is accepted .
Q2: what file we should offer?
A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list.
Q3:No PCB file/Gerber file, only have the PCB sample,can you produce it for me?
A3: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB layout and work out the PCB files, then produce for you.
Q4: What is the lead time?
A4:Sample needs 7-10 days, mass production needs 10- 15 days,
according to the order volume.Also we can provide quick time service 1-2days.
Q5: What payment terms do you have?
A5: For small orders, we usually prefer Paypal and Western Union; For bigger order,pls pay by TT.
Would like to know more about the product? Send us inquiry, click "Send" now!
Please feel free to send us gerber file for lastest price and discount!
