Fr4 Base Material PCB Fr4 PCB Main Board Fr4 PCB Gold Finger Boards


Product Description

Customized One-Stop PCBA for Industrial Controller PCBA Board Manufacturer


Parameter & Data Sheet
Size of PCBA90 X 87mm
Number of Layers4
Board Type PCBA
Board Thickness1.6mm
Board MaterialFR-4 1.6mm
Board Material SupplierShengyi
Tg Value of Board Material 60ºC

PTH Cu thickness≥20 µm
Inner Iayer Cu thicknes35 µm
Surface Cu thickness35 µm

Coverlay ColourYellow Coverlayer / Green solder mask
Number of Coverlay2
Thickness of Coverlay25 µm
Stiffener Materialno
Stiffener ThicknessN/A

Type of Silkscreen InkIJR-4000 MW300
Supplier of SilkscreenTAIYO
Color of SilkscreenWhite
Number of Silkscreens2

Peeling test of CoverlayNo peelable
Legend Adhesion3M 90ºC No peeling after Min. 3 times test

Surface FinishImmersion Gold
The thickness of Nickle/GoldAu: 0.03µm(Min.); Ni 2-4µm
RoHS RequiredYes
Famability94-V0

Thermal Shock TestPass, -25ºC±125ºC, 1000 cycles.
Thermal StressPass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering.
Function 100% Pass electrical test
WorkmanshipCompliance with IPC-A-600H & IPC-6013C Class 2

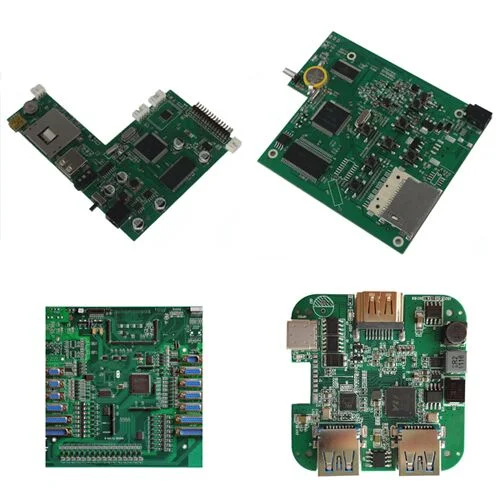

FR4 products show
