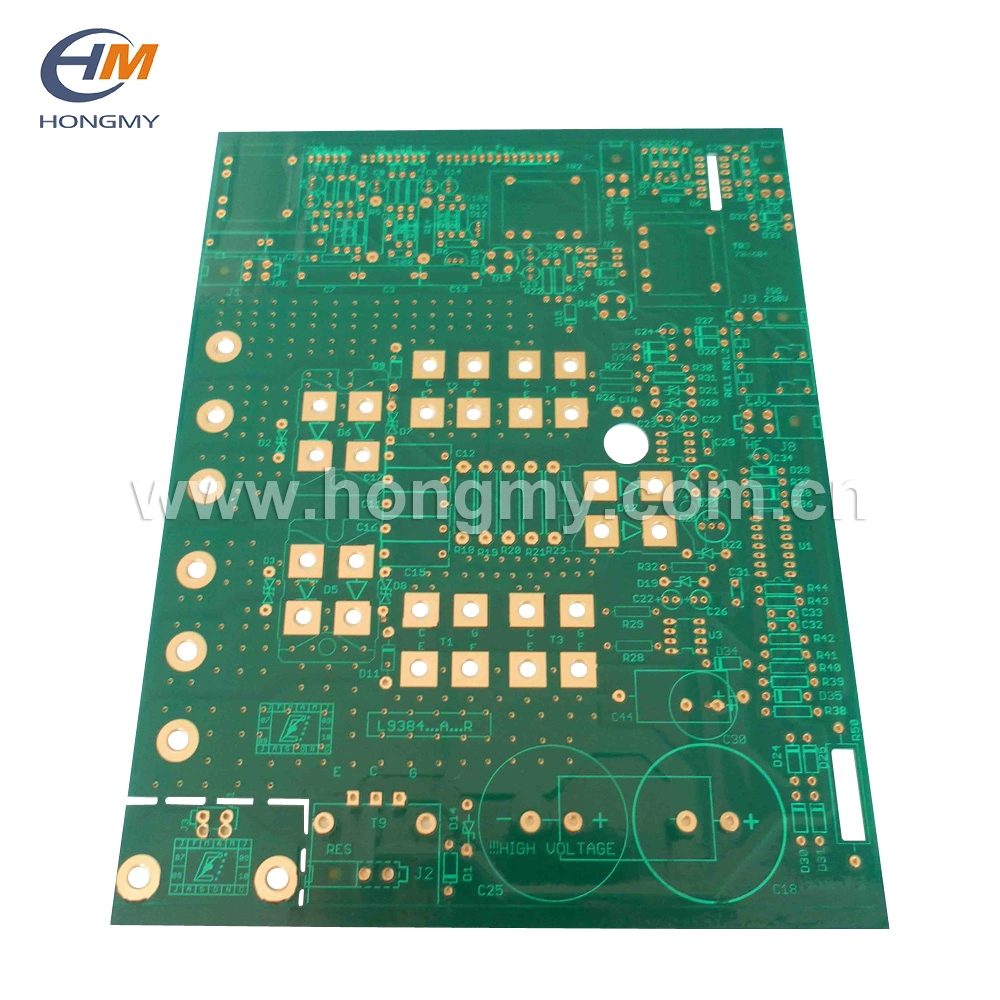

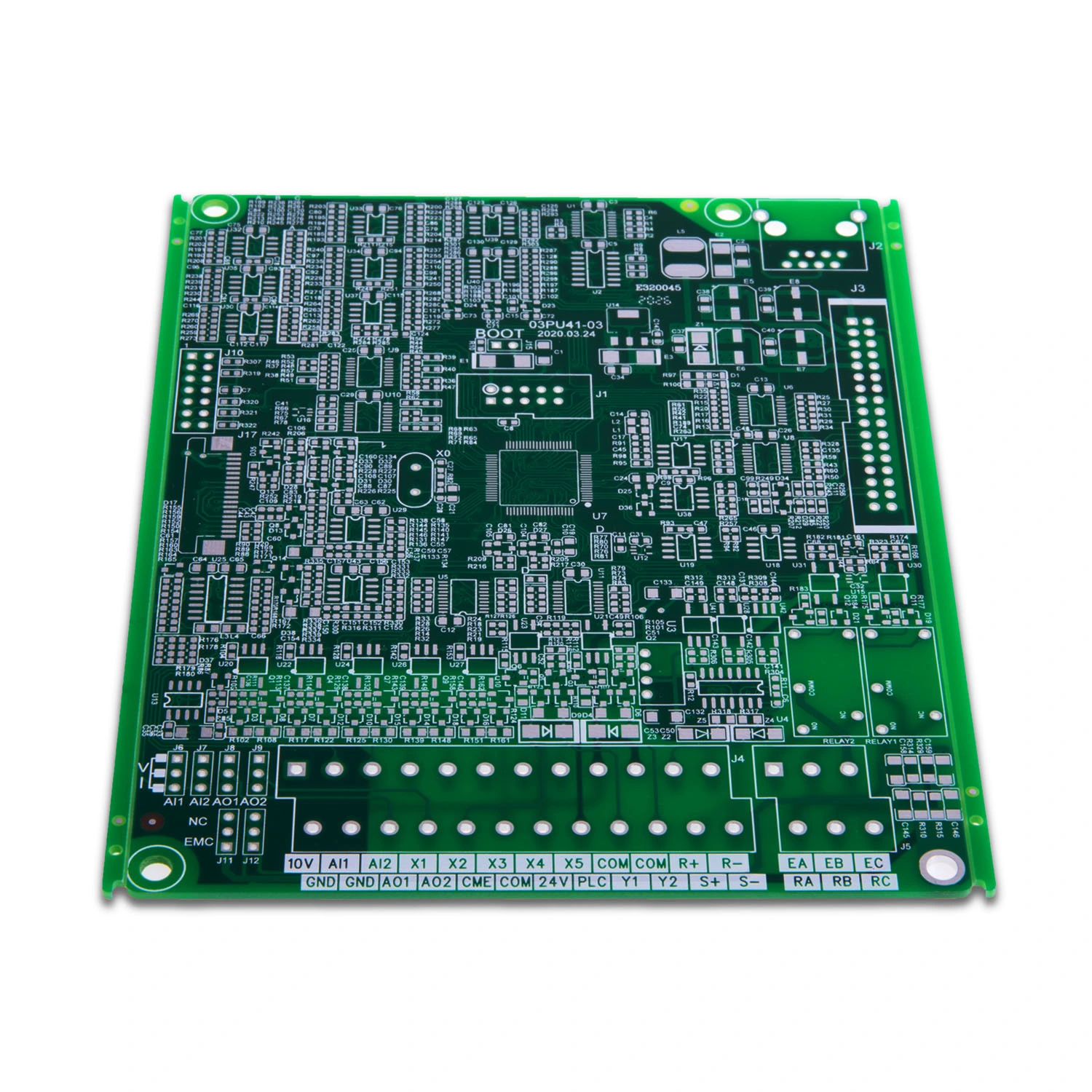

Product details
Item | Manufacture Capability | |
Material | FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-1, Aluminium, Metal based | |
Layer No. | 1-16 | |
Finished Board thickness | 0.2 mm-3.8mm'(8 mil-150 mil) | |
| ||
Board Thickness Tolerance | ±10% | |
Cooper thickness | 0.5 OZ-6OZ (18 um-210um) | |
Copper Plating Hole | 18-40 um | |
Impedance Control | ±10% | |
Warp&Twist | 0.70% | |
Peelable | 0.012"(0.3mm)-0.02'(0.5mm) | |
Images | ||
Min Trace Width (a) | 0.075mm (3mil) |
|
Min Space Width (b) | 0.1mm (4 mil) | |
Min Annular Ring | 0.1mm (4 mil) |
|
SMD Pitch (a) | 0.2 mm(8 mil) |
|
BGA Pitch (b) | 0.2 mm (8 mil) | |
| 0.05mm | |
Solder Mask | ||
Min Solder Mask Dam (a) | 0.0635 mm (2.5mil) |
|
Soldermask Clearance (b) | 0.1mm (4 mil) | |
Min SMT Pad spacing (c) | 0.1mm (4 mil) | |
Solder Mask Thickness | 0.0007"(0.018mm) | |
Holes | ||
Min Hole size (CNC) | 0.2 mm (8 mil) | |
Min Punch Hole Size | 0.9 mm (35 mil) | |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm | |
Hole Position Tol | ±0.075mm | |
Plating | ||
HASL | 2.5um | |
Lead free HASL | 2.5um | |
Immersion Gold | Nickel 3-7um Au:1-5u'' | |
OSP | 0.2-0.5um | |
Outline | ||
Panel Outline Tol (+/-) | CNC: ±0.125mm, Punching: ±0.15mm | |
Beveling | 30°45° | |
Gold Finger angle | 15° 30° 45° 60° | |
Certificate | IATF16949,ROHS, ISO9001:2008, SGS, UL certificate,CQC certificate |
Packaging Details:Carton Box with Vaccum Anti-static bag inner Delivery.
Delivery Time:2 to 15 days after deposit
FAQ
Q1: How do you make sure the quality?
•:Our Product is all 100% tested including Flying Probe Test (for sample), E-test (mass) or AOI.
Q2.What do I need to offer for production?
•Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
Q3. What file formats do you accept for production?
•Gerber file: CAM350 RS274X
•PCB file: Protel 99SE
Q4.Are my PCB files safe when I submit them to you for manufacturing?
•We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written. Permission from you, nor we'll share these files with any other 3rd parties.
Q5:What is your minimum order quantity?
• Our MOQ is 1 PCS.
Company Information
Shenzhen Hongmy Precision Circuit Co., Ltd ,founded in 2007, is a high-tech enterprise which specializes in developing, manufacturing and marketing of Printed Circuit Board (PCB). Our factory is located in the beautiful city: Shenzhen, near to Hong Kong, Dongguan, Guangzhou, Huizhou and so on, which is convenient for your visiting.
Since the establishment of the company, we are committed to become a leading company of PCB system solutions. With 7000 square meters' of workshop area and over 300 employees, We offer a wide range of PCBs, such as single-sided, double-sided, multi-layer, high frequency, MCPCB, and so on.
Our customers are from over world in various industries, including Computer, Automotive, Medical Equpment,Digital Appliance,Home control, Consumer products, Telecom, etc.
We believe Quality Always Comes First !Our manufacturing and quality control processes are ISO 9001:2008 certified and conform to IPC-A600(PCB) standards. All our PCB are UL certified and RoHS compliant.
Our eternal and ultimate target is"Create higher value and offer better solutions for our customers all the time",
Our orientation is clear, "Focus on prototypes and low to medium volume business "
